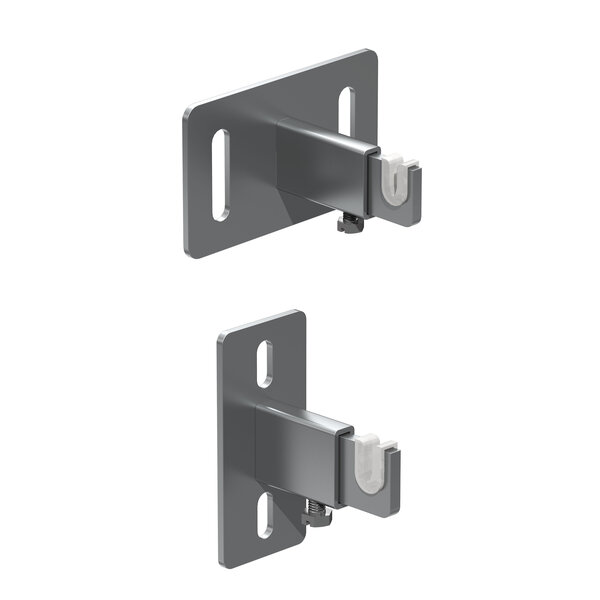

Stable brackets for panels with hanging loops
Stable brackets for radiators with hanging loops, recommended for use in public buildings
Benefits
- Height- and depth-adjustable brackets
- Large wall contact
- High performance values due to solid material construction
- Simple to install
- Can be installed at 180 degree angle as anti-lifting protection
Product features
- Galvanised metal parts
- Sound-insulated
- Adjustable wall distance (see measurements A)
- Stable screw plate
- 10-5330 and 10-5340 varnished in white
Measurements and details
See price list in the download area
| Ordernumber | Max. load F1 [N] | Max. load F2 [N] | F1+F2 measured for L [mm] | Measurement A [mm] | Packaging unit [pieces] | Weight |
|---|---|---|---|---|---|---|
| 10-531-55 | 1100 | 350 | 50 | 40-50 | 100 | 23.2 kg/Packaging unit |
| 10-531-85 | 800 | 350 | 120 | 83-128 | 100 | 31.4 kg/Packaging unit |
| 10-533 | 1100 | 350 | 70 | 50-70 | 100 | 17.86 kg/Packaging unit |
| 10-5330 | 1100 | 350 | 70 | 50-70 | 100 | 17.4 kg/Packaging unit |
| 10-534 | 1000 | 350 | 90 | 70-90 | 100 | 22.0 kg/Packaging unit |
| 10-5340 | 1000 | 350 | 90 | 70-90 | 100 | 22.16 kg/Packaging unit |
