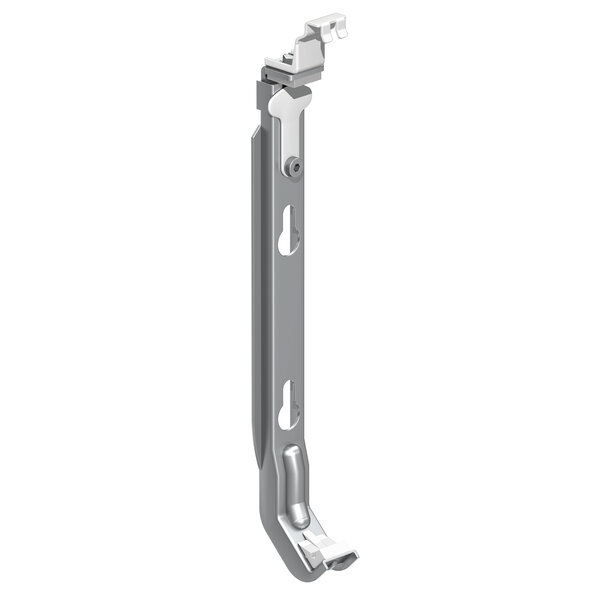

Wall brackets EKV-Plus for panel radiators without hanging loops
WS EKV Plus for all multi-row panel radiators without hanging loops.
Benefits
- Fully installed
- Automatic anti-lifting protection
- Short installation time
- Simple to dismantle including in niches
- Depth-adjustable for uneven walls
- High performance values
Product features
- In combination with 2 fixing screws per wall rail achieves requirements class 2 as per VDI 6036
- Galvanised metal parts
- Upper bracket is powder-coated
- Sound-insulated
- Kit consists of 2 brackets 2 screws and 2 dowels (from BH 600 mm 4 screws and 4 dowels)
Accessories
- Bridging blocks
Measurements and details
See price list in the download area
| Ordernumber | Type | Max. load F1 [N] | Max. load F2 [N] | Packaging unit [kit] | Weight | Ordernumber | Type |
|---|---|---|---|---|---|---|---|
| - | - | 1200 | 250 | 1 | 0.45 kg/Packaging unit | 10-376300 | EKV-Plus BH 300 |
| - | - | 1200 | 250 | 1 | 0.5 kg/Packaging unit | 10-376350 | EKV-Plus BH 350 |
| - | - | 1200 | 250 | 1 | 0.56 kg/Packaging unit | 10-376400 | EKV-Plus BH 400 |
| - | - | 1200 | 250 | 1 | 0.66 kg/Packaging unit | 10-376500 | EKV-Plus BH 500 |
| - | - | 1200 | 250 | 1 | 0.90 kg/Packaging unit | 10-376600 | EKV-Plus BH 600 |
| - | - | 1200 | 250 | 1 | 0.84 kg/Packaging unit | 10-376700 | EKV-Plus BH 700 |
| - | - | 1200 | 250 | 1 | 1.1 kg/Packaging unit | 10-376900 | EKV-Plus BH 900 |
| - | - | 1200 | 250 | 1 | 1.16 kg/Packaging unit | 10-376950 | EKV-Plus BH 950 |
| - | - | 1200 | 250 | 1 | 0.45 kg/Packaging unit | 10-377300 | EKV-Plus BH 300 |
| - | - | 1200 | 250 | 1 | 0.56 kg/Packaging unit | 10-377400 | EKV-Plus BH 400 |
| - | - | 1200 | 250 | 1 | 0.66 kg/Packaging unit | 10-377500 | EKV-Plus BH 500 |
| - | - | 1200 | 250 | 1 | 0.82 kg/Packaging unit | 10-377600 | EKV-Plus BH 600 |
| - | - | 1200 | 250 | 1 | 1.1 kg/Packaging unit | 10-377900 | EKV-Plus BH 900 |
| - | - | 1200 | 250 | 1 | 0.45 kg/Packaging unit | 10-378300 | EKV-Plus BH 300 |
| - | - | 1200 | 250 | 1 | 0.56 kg/Packaging unit | 10-378400 | EKV-Plus BH 400 |
| - | - | 1200 | 250 | 1 | 0.66 kg/Packaging unit | 10-378500 | EKV-Plus BH 500 |
| - | - | 1200 | 250 | 1 | 0.9 kg/Packaging unit | 10-378600 | EKV-Plus BH 600 |
| - | - | 1200 | 250 | 1 | 1.2 kg/Packaging unit | 10-378900 | EKV-Plus BH 900 |
